Adapter

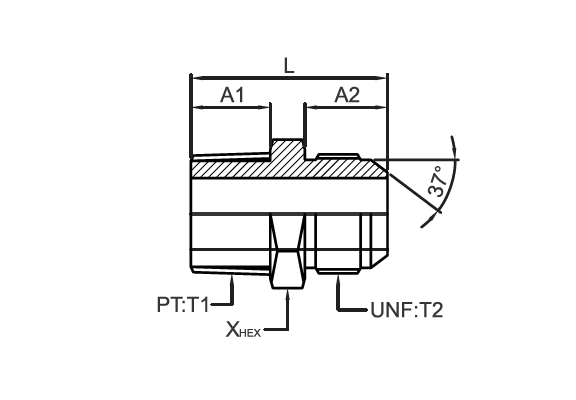

A1 STRAIGHT/JIC 37° CONE

SIZE T1 T2 A1 A2 L XHEX
02 1/8 7/16-20 11.0 14.0 31.0 12.0
04 1/4 9/16-18 13.0 14.1 36.3 14.0
06 3/8 3/4-16 15.0 16.7 38.9 19.0
08 1/2 7/8-14 18.0 19.3 48.0 22.0
12 3/4 1-1/16-12 20.0 21.9 52.3 27.0
16 1 1-5/16-12 22.0 23.1 58.4 36.0
20 1-1/4 1-5/8-12 25.0 24.3 62.2 41.0
24 1-1/2 1-7/8-12 25.0 27.5 68.1 46.0
32 2 2-1/2-12 29.0 33.9 79.0 60.0

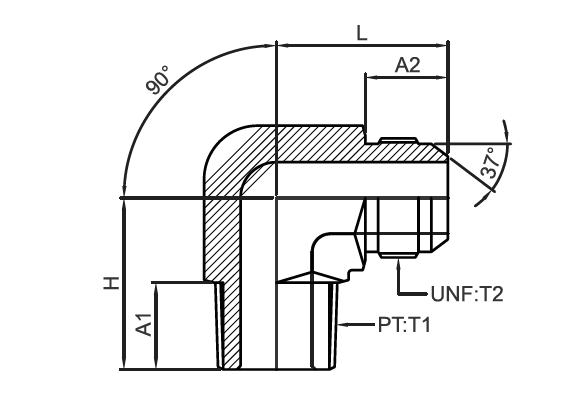

A2 90° ELBOW/JIC 37° CONE
SIZE T1 T2 A1 A2 H L
02 1/8 7/16-20 11.0 14.0 19.8 22.5
04 1/4 9/16-18 17.0 14.1 27.7 27.0
06 3/8 3/4-16 20.0 16.7 31.0 32.0
08 1/2 7/8-14 24.0 19.3 37.3 37.0
12 3/4 1-1/16-12 28.0 21.9 40.4 42.0
16 1 1-5/16-12 32.0 23.1 50.0 46.0
20 1-1/4 1-5/8-12 35.0 24.3 60.5 52.5
24 1-1/2 1-7/8-12 38.0 27.5 67.1 59.0
32 2 2-1/2-12 42.0 33.9 76.2 77.5

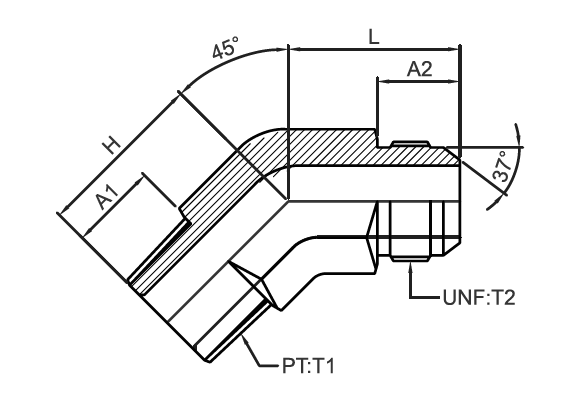

A3 45° ELBOW/JIC 37° CONE
SIZE T1 T2 A1 A2 H L
02 1/8 7/16-20 11.0 14.0 16.3 18.5
04 1/4 9/16-18 13.0 14.1 21.8 21.0
06 3/8 3/4-16 15.0 16.7 24.1 25.0
08 1/2 7/8-14 18.0 19.3 29.7 28.0
12 3/4 1-1/16-12 20.0 21.9 30.5 32.5
16 1 1-5/16-12 22.0 23.1 37.6 37.5
20 1-1/4 1-5/8-12 25.0 24.3 42.4 40.5
24 1-1/2 1-7/8-12 25.0 27.5 45.0 45.0
32 2 2-1/2-12 29.0 33.9 53.6 56.5

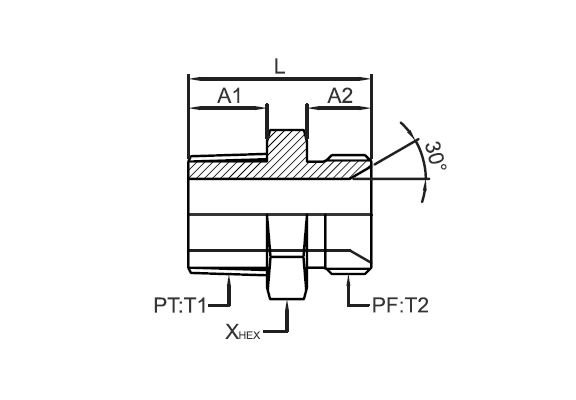

A4 (JAPAN 1009) STRAIGHT/JIS 30° FLARE
SIZE T1 T2 I.D A1 A2 L XHEX
04 1/4 1/4 5.0 13.0 13.0 34.0 14.0
06 3/8 3/8 8.0 15.0 15.0 38.0 19.0
08 1/2 1/2 11.0 18.0 18.0 46.0 22.0
12 3/4 3/4 16.0 20.0 20.0 52.0 27.0
16 1 1 22.0 22.0 22.0 56.0 36.0
20 1-1/4 1-1/4 28.0 25.0 25.0 64.0 41.0
24 1-1/2 1-1/2 34.0 25.0 25.0 65.0 46.0
32 2 2 46.0 29.0 29.0 76.0 60.0

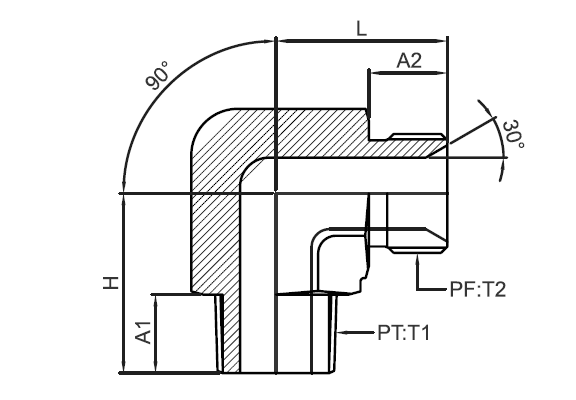

A5 (JAPAN 1034) 90° ELBOW/JIS 30° FLARE
SIZE T1 T2 I.D A1 A2 H L
04 1/4 1/4 5.0 17.0 13.0 26.0 22.0
06 3/8 3/8 8.0 20.0 15.0 30.0 25.0
08 1/2 1/2 11.0 24.0 18.0 36.0 30.0
12 3/4 3/4 16.0 28.0 20.0 43.0 35.0
16 1 1 22.0 32.0 22.0 50.0 40.0
20 1-1/4 1-1/4 28.0 35.0 25.0 58.0 48.0
24 1-1/2 1-1/2 34.0 38.0 25.0 63.0 50.0
32 2 2 46.0 42.0 29.0 75.0 62.0

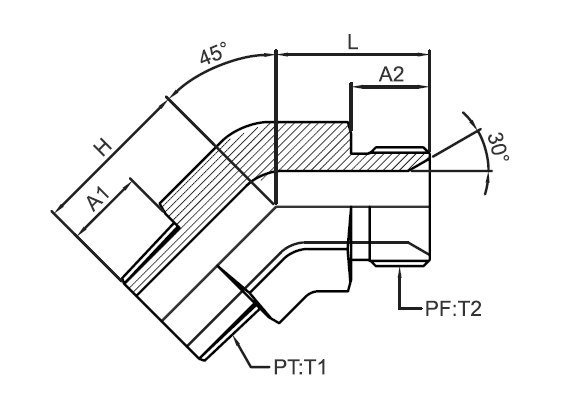

A6 (JAPAN 1036) 45° ELBOW/JIS 30° FLARE
SIZE T1 T2 I.D A1 A2 H L
04 1/4 1/4 5.0 13.0 13.0 19.0 19.0
06 3/8 3/8 8.0 15.0 15.0 22.0 22.0
08 1/2 1/2 11.0 18.0 18.0 26.0 26.0
12 3/4 3/4 16.0 20.0 20.0 30.0 30.0
16 1 1 22.0 22.0 22.0 34.0 34.0
20 1-1/4 1-1/4 28.0 25.0 25.0 40.0 40.0
24 1-1/2 1-1/2 34.0 25.0 25.0 44.0 44.0
32 2 2 46.0 29.0 29.0 50.0 50.0

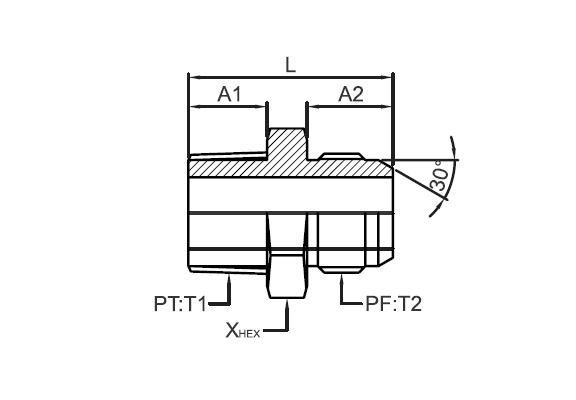

A7 (JAPAN 1012) STRAIGHT/JIS 30° CONE
SIZE T1 T2 I.D A1 A2 H L
04 1/4 1/4 5.0 13.0 13.0 19.0 19.0
06 3/8 3/8 8.0 15.0 15.0 22.0 22.0
08 1/2 1/2 11.0 18.0 18.0 26.0 26.0
12 3/4 3/4 16.0 20.0 20.0 30.0 30.0
16 1 1 22.0 22.0 22.0 34.0 34.0
20 1-1/4 1-1/4 28.0 25.0 25.0 40.0 40.0
24 1-1/2 1-1/2 34.0 25.0 25.0 44.0 44.0
32 2 2 46.0 29.0 29.0 50.0 50.0

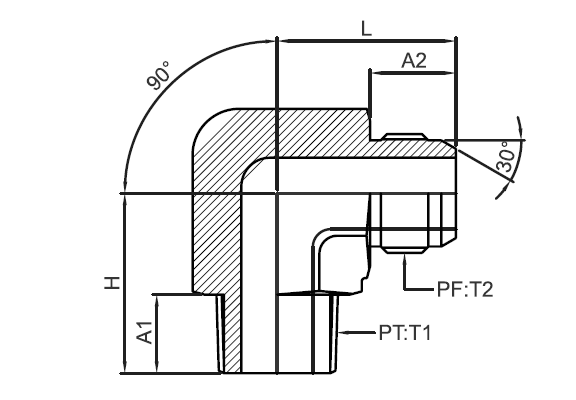

A8 (JAPAN 1033) 90° ELBOW/JIS 30° CONE
SIZE T1 T2 I.D A1 A2 H L
04 1/4 1/4 5.0 17.0 16.0 26.0 25.0
06 3/8 3/8 8.0 20.0 18.0 30.0 28.0
08 1/2 1/2 11.0 24.0 20.0 36.0 32.0
12 3/4 3/4 16.0 28.0 22.0 43.0 37.0
16 1 1 22.0 32.0 24.0 50.0 42.0
20 1-1/4 1-1/4 28.0 35.0 27.0 58.0 50.0
24 1-1/2 1-1/2 34.0 38.0 27.0 63.0 52.0
32 2 2 46.0 42.0 30.0 75.0 63.0

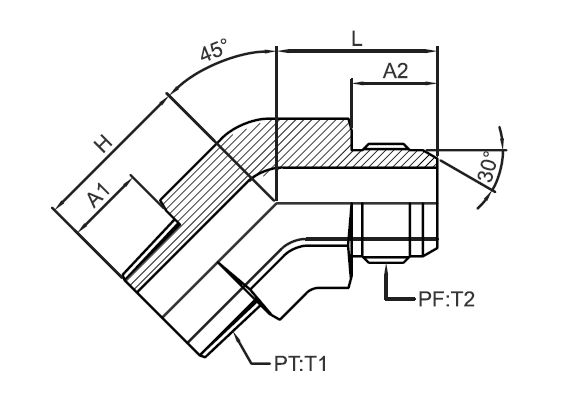

A9 (JAPAN 1035) 45° ELBOW/JIS 30° CONE
SIZE T1 T2 I.D A1 A2 H L
04 1/4 1/4 5.0 13.0 16.0 19.0 22.0
06 3/8 3/8 8.0 15.0 18.0 22.0 25.0
08 1/2 1/2 11.0 18.0 20.0 26.0 28.0
12 3/4 3/4 16.0 20.0 22.0 30.0 32.0
16 1 1 22.0 22.0 24.0 34.0 36.0
20 1-1/4 1-1/4 28.0 25.0 27.0 40.0 42.0
24 1-1/2 1-1/2 34.0 25.0 27.0 44.0 43.0
32 2 2 46.0 29.0 30.0 50.0 51.0

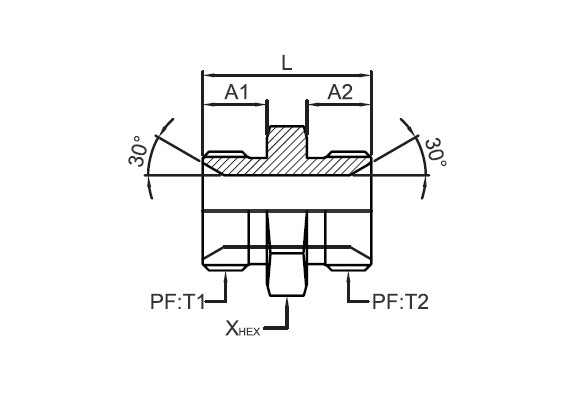

A10 (JAPAN 1011) STRAIGHT/MALE PIPE -30° FLARE
SIZE T1 T2 I.D A1 A2 L XHEX
04 1/4 1/4 5.0 13.0 13.0 34.0 14.0
06 3/8 3/8 8.0 15.0 15.0 38.0 19.0
08 1/2 1/2 11.0 18.0 18.0 46.0 22.0
12 3/4 3/4 16.0 20.0 20.0 52.0 27.0
16 1 1 22.0 22.0 22.0 56.0 36.0
20 1-1/4 1-1/4 28.0 25.0 25.0 64.0 41.0
24 1-1/2 1-1/2 34.0 25.0 25.0 65.0 46.0
32 2 2 46.0 29.0 29.0 76.0 60.0

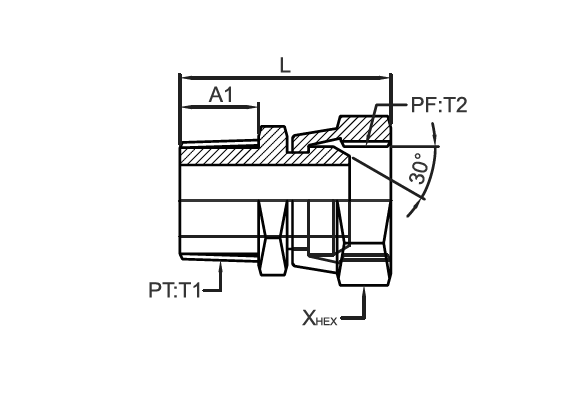

A11 (JAPAN 1006) SWIVEL MALE CONNECTOR
SIZE T1 T2 I.D A1 L XHEX
04 1/4 1/4 5.0 13.0 39.0 19.0
06 3/8 3/8 8.0 15.0 43.0 22.0
08 1/2 1/2 10.0 18.0 50.5 27.0
12 3/4 3/4 16.0 20.0 56.5 36.0
16 1 1 21.5 22.0 62.5 41.0
20 1-1/4 1-1/4 27.5 25.0 72.5 50.0
24 1-1/2 1-1/2 33.0 25.0 77.5 60.0
32 2 2 44.0 29.0 90.0 70.0

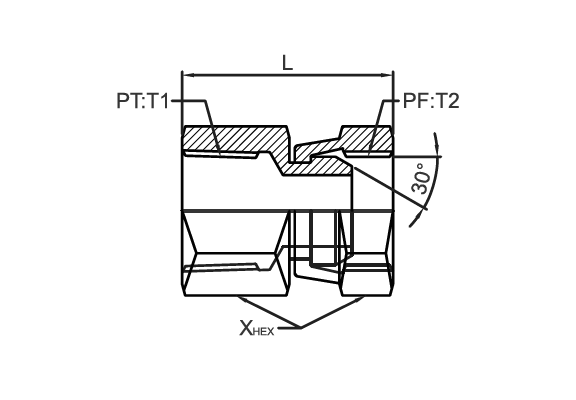

A12 (JAPAN 1008) SWIVEL MALE CONNECTOR
SIZE T1 T2 I.D L XHEX
04 1/4 1/4 5.0 30.5 19.0
06 3/8 3/8 8.0 39.0 22.0
08 1/2 1/2 10.0 44.5 27.0
12 3/4 3/4 16.0 49.5 36.0
16 1 1 21.5 53.5 41.0
20 1-1/4 1-1/4 27.5 60.5 50.0
24 1-1/2 1-1/2 33.0 62.0 60.0
32 2 2 44.0 74.0 70.0

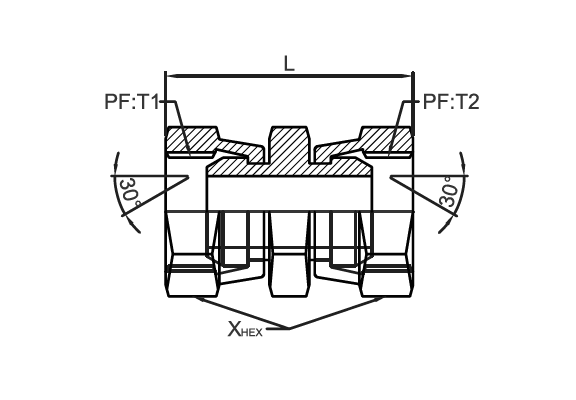

A13 (JAPAN 1010) SWIVEL UNION
SIZE T1 T2 I.D L XHEX
04 1/4 1/4 5.0 30.5 19.0
06 3/8 3/8 8.0 39.0 22.0
08 1/2 1/2 10.0 44.5 27.0
12 3/4 3/4 16.0 49.5 36.0
16 1 1 21.5 53.5 41.0
20 1-1/4 1-1/4 27.5 60.5 50.0
24 1-1/2 1-1/2 33.0 62.0 60.0
32 2 2 44.0 74.0 70.0
